Deploy n8n on Kubernetes using GitOps with Terraform and ArgoCD

Bootstrapping a Scalable, GitOps‑Driven n8n Automation Platform on Kubernetes.

A production‑grade guide to deploying n8n on Kubernetes using CloudNativePG, ArgoCD, and Terraform.

TL;DR – In under an hour, you’ll have n8n running on Kubernetes with:

• A dedicated, highly‑available PostgreSQL cluster using CloudNativePG
• Secrets securely managed in Azure Key Vault via External Secrets Operator
• CI-friendly, declarative deployment via ArgoCD & Kustomize overlays
• Resilient, observable infrastructure with built-in failover and backups

Why Self-Host n8n in Kubernetes?

n8n is a powerful open-source automation tool.

We use automation tools like n8n to simplify our workflows — but what about the deployment and management of n8n itself?

In the era of cloud-native applications, delivering a reliable, scalable automation platform demands more than docker run.

It demands GitOps.

While you can run it with Docker, Kubernetes offers much more:

• Persistence and scalability for real workloads
• Secrets management via external vaults (no plaintext in Git)
• HA Postgres via CloudNativePG (each app gets its own cluster)
• GitOps workflow — push YAML to deploy and recover fast

This tutorial shows how to deploy n8n like a cloud-native service — Git first, API-secured, and production-ready.

Why Automating Automation Itself Matters

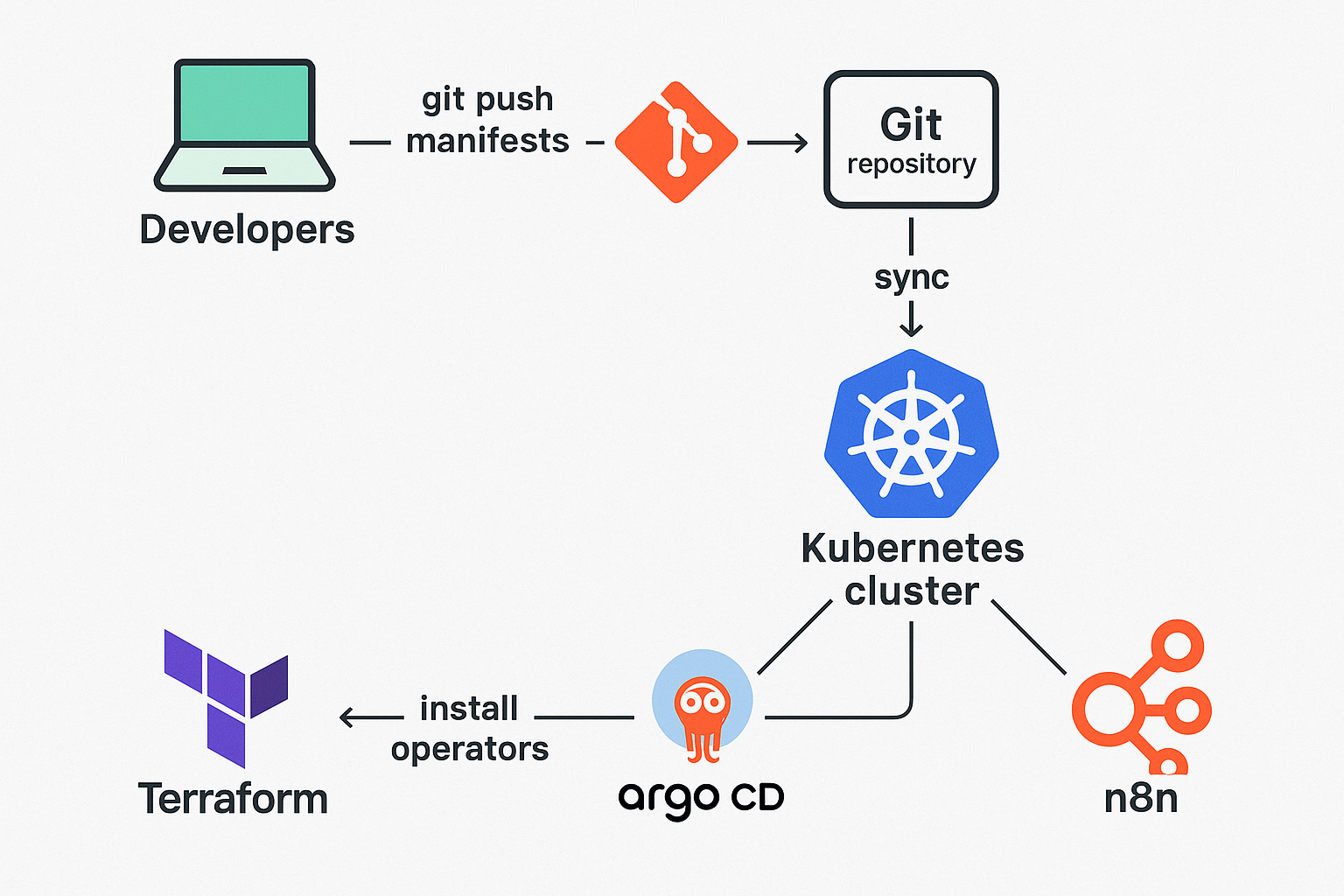

2 – Architecture Overview

┌──────────────────────┐              ┌────────────────────────────┐
│  Developers          │  git         │  Git repository            │
│  push YAML/TF        ├─────────────▶│  apps/   databases/        │
└──────────────────────┘              │  argocd/                   │
          ▲ gitops sync               └──────────▲─────────────────┘
          │                                       │
┌─────────┴────────┐                          ┌───┴─────────────┐
│     ArgoCD       │  applies manifests       │  Kubernetes     │
│ (ApplicationSet) ├─────────────────────────▶│  cluster        │
└─────────┬────────┘                          └────┬────────────┘
          │ Helm / CRDs                            │
┌─────────▼────────┐                         ┌────▼──────────────────────────┐
│ Terraform        │  installs operators     │  CNPG operator (HA PG)        │
│ (cluster-admin)  ├────────────────────────▶│  External-Secrets operator    │
└──────────────────┘                         └───────────────────────────────┘

3 – Prerequisites

Tool	Version tested	Purpose
Kubernetes	≥ 1.27	Where everything runs
Terraform	≥ 1.5	Infrastructure provisioning
ArgoCD	≥ 2.8	GitOps sync engine
CloudNativePG	≥ 1.22	PostgreSQL operator
External-Secrets Operator	≥ 0.9	Secret sync from Azure KV
Azure Key Vault	Any	Secret backend

Also needed: kubectl, kustomize, and a Git repo.

4 – Repository Layout

We follow a Kustomize base/overlay GitOps layout:

apps/
  └── n8n/
      ├── base/
      │   ├── deployment.yaml
      │   ├── service.yaml
      │   └── kustomization.yaml
      └── overlays/
          └── dev/
              ├── secrets.yaml  # ExternalSecret → Azure KV
              ├── namespace.yaml
              └── kustomization.yaml

databases/
  └── n8n/
      ├── base/
      │   └── database.yaml     # CloudNativePG cluster
      └── overlays/
          └── dev/
              ├── secrets.yaml  # Azure blob backup secrets
              ├── scheduled-backup.yaml
              └── kustomization.yaml

argocd/
  ├── applicationset.yaml
  ├── db-applicationset.yaml
  └── external-secret-application.yaml
terraform/
  └── main.tf

This structure allows multiple environments (dev, qa, prod) to share base logic and override only the differences.

5 – Terraform Bootstrap

The terraform/main.tf file installs all cluster-level operators:

resource "helm_release" "cnpg" {
  name       = "cloudnative-pg"
  repository = "https://cloudnative-pg.github.io/charts"
  chart      = "cloudnative-pg"
  version    = "0.20.1"
  namespace  = "cnpg-system"
  create_namespace = true
}

resource "helm_release" "external_secrets" {
  name       = "external-secrets"
  repository = "https://charts.external-secrets.io"
  chart      = "external-secrets"
  version    = "0.9.16"
  namespace  = "external-secrets"
  create_namespace = true
}

resource "helm_release" "argo_cd" {
  name       = "argocd"
  repository = "https://argoproj.github.io/argo-helm"
  chart      = "argo-cd"
  version    = "5.51.6"
  namespace  = "argocd"
  create_namespace = true
  set {
    name  = "configs.params.server.insecure"
    value = true
  }
}

Run terraform apply to provision these foundational components.

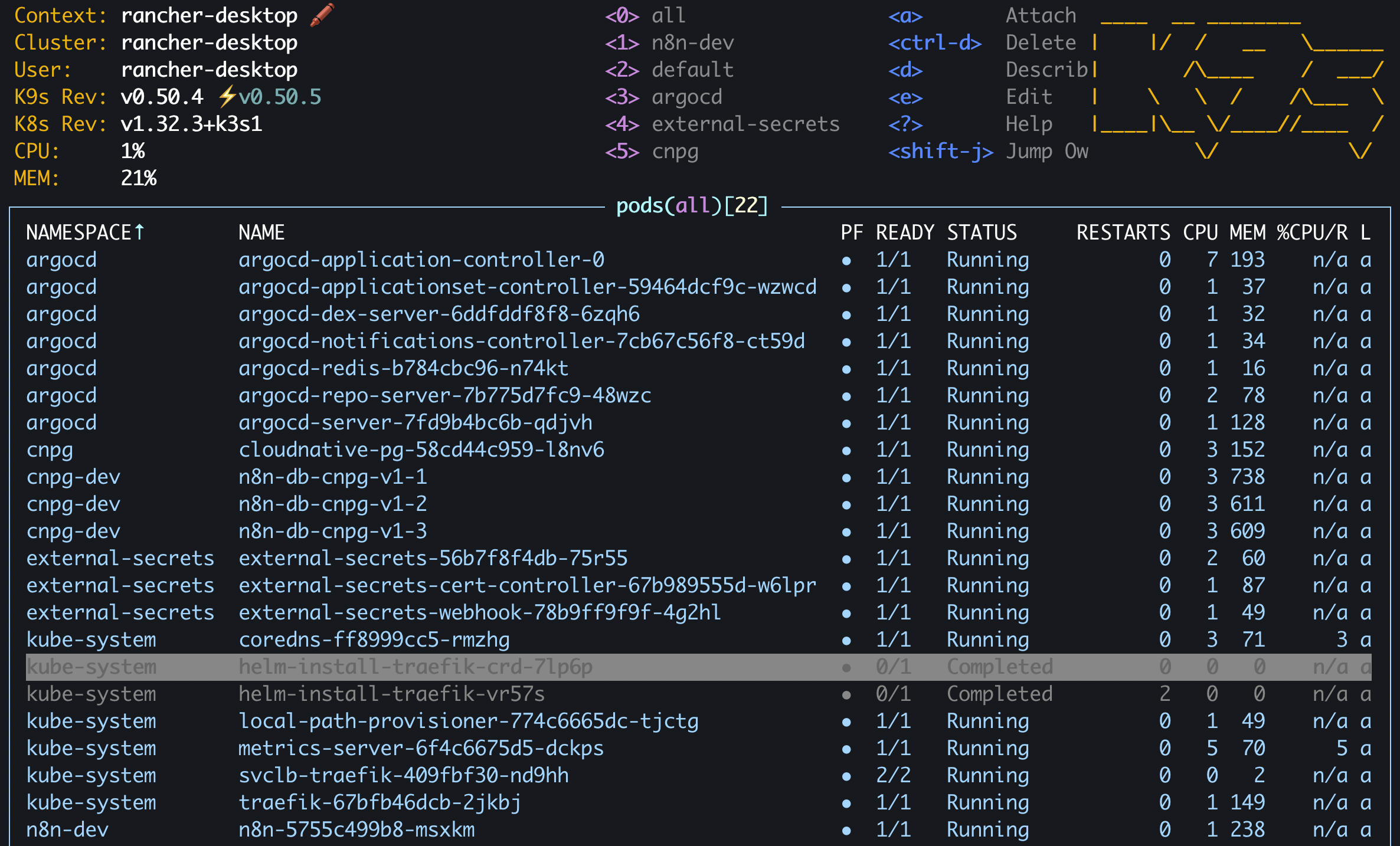

Then watch the happy pods come to life:

6 – Deploy the PostgreSQL Cluster for n8n

databases/n8n/base/database.yaml defines the per-app CloudNativePG cluster:

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: n8n-db-cnpg-v1
spec:
  imageName: quay.io/enterprisedb/postgresql:16.1
  instances: 3
  storage:
    size: 5Gi
  bootstrap:
    initdb:
      database: n8n
      owner: n8n
      secret:
        name: n8n-db-creds
  backup:
    barmanObjectStore:
      destinationPath: https://<yourblob>.blob.core.windows.net/n8n-db
      azureCredentials:
        storageAccount:
          name: n8n-db-storage
          key: container-name
        storageSasToken:
          name: n8n-db-storage
          key: blob-sas
    retentionPolicy: 14d

The *-rw service is created automatically by CNPG — we’ll use it in our deployment.

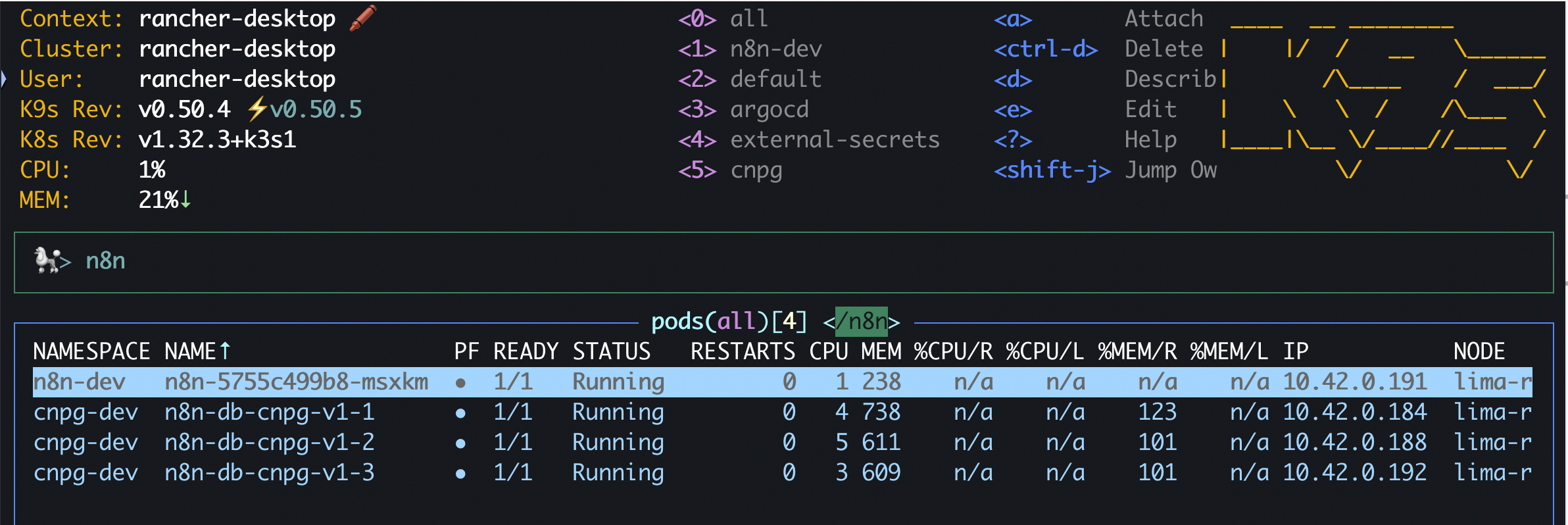

Here are the pods of our highly-available PostgresQL cluster:

7 – n8n Deployment with Kustomize

apps/n8n/base/deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: n8n
spec:
  replicas: 1
  selector:
    matchLabels:
      app: n8n
  template:
    metadata:
      labels:
        app: n8n
    spec:
      containers:
        - name: n8n
          image: docker.n8n.io/n8nio/n8n:latest
          ports:
            - containerPort: 5678
          env:
            - name: DB_TYPE
              value: postgresdb
            - name: DB_POSTGRESDB_HOST
              value: n8n-db-cnpg-v1-rw.cnpg-dev.svc.cluster.local
            - name: DB_POSTGRESDB_DATABASE
              value: n8n
            - name: DB_POSTGRESDB_SCHEMA
              value: public
            - name: N8N_ENCRYPTION_KEY
              valueFrom:
                secretKeyRef:
                  name: n8n-encryption
                  key: key
            - name: N8N_DEFAULT_EDITION
              value: community
            - name: N8N_RUNNERS_MODE
              value: internal
            - name: N8N_DIAGNOSTICS_ENABLED
              value: "false"
          volumeMounts:
            - name: n8n-data
              mountPath: /home/node/.n8n
      volumes:
        - name: n8n-data
          emptyDir: {}

8 – ApplicationSets in ArgoCD

Use a Git-based generator in argocd/applicationset.yaml:

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: apps
spec:
  generators:
    - git:
        repoURL: https://github.com/your-org/homelab-gitops.git
        revision: main
        directories:
          - path: apps/*/overlays/*
  template:
    metadata:
      name: ""
    spec:
      source:
        repoURL: https://github.com/your-org/homelab-gitops.git
        targetRevision: main
        path: ""
      destination:
        server: https://kubernetes.default.svc
        namespace: ""
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

9 – First Git Push ➜ Running Stack

Once your Git repo is ready:

git add apps/n8n databases/n8n
git commit -m "feat(n8n): deploy app and db"
git push

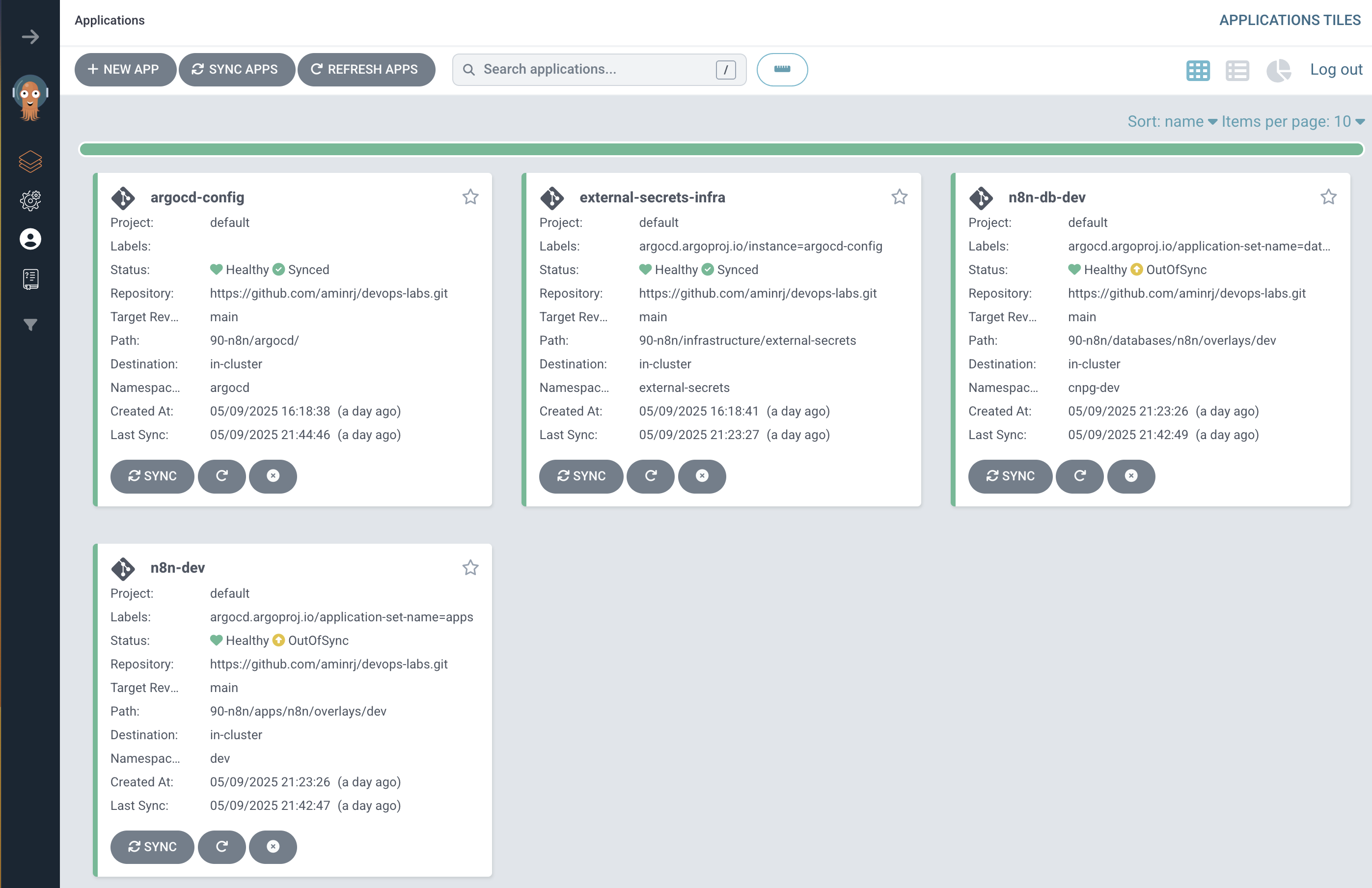

ArgoCD will pick it up, apply manifests, and in a few minutes:

kubectl get pods -n n8n-dev
kubectl port-forward svc/n8n 5678:80 -n n8n-dev

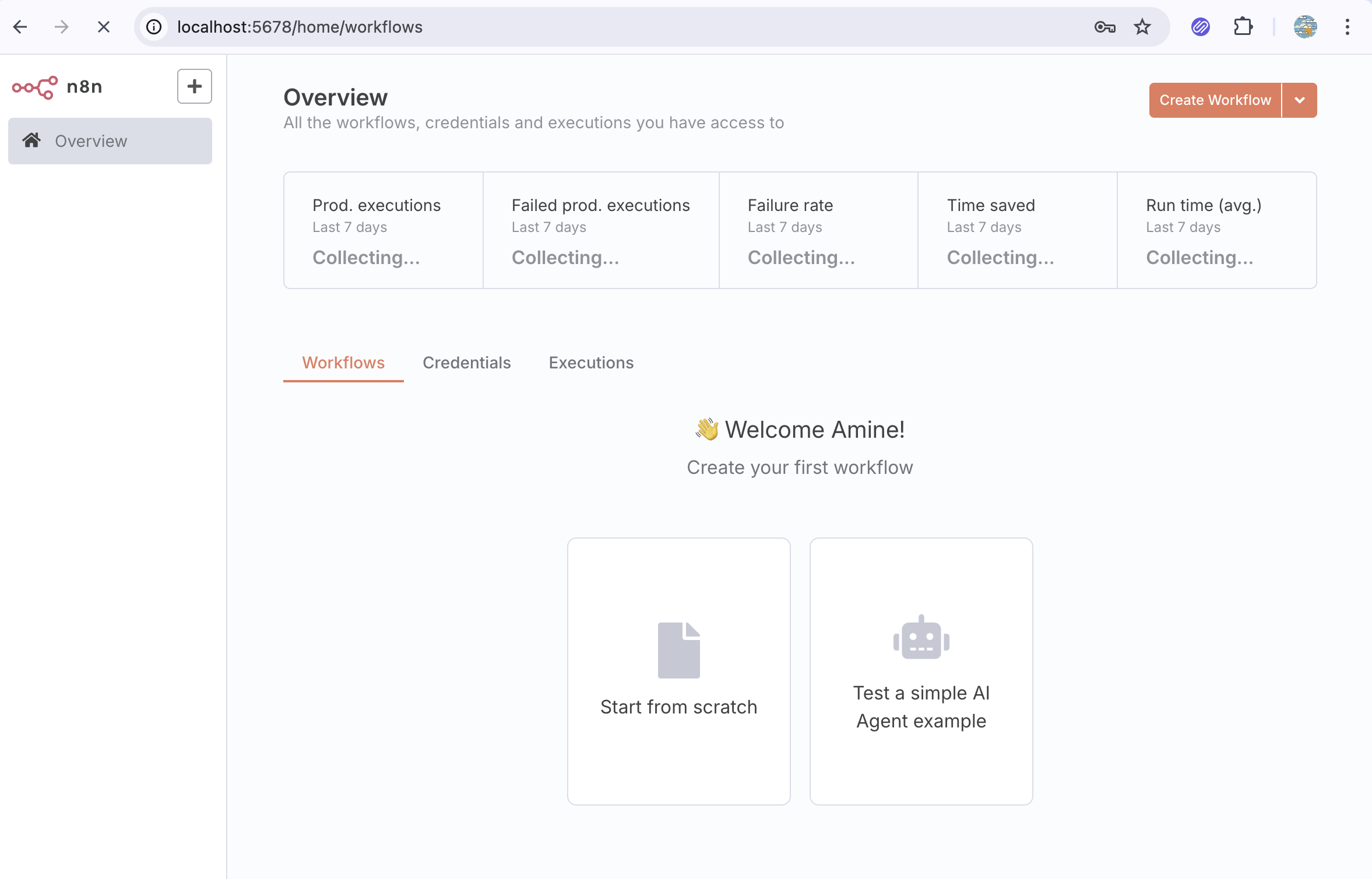

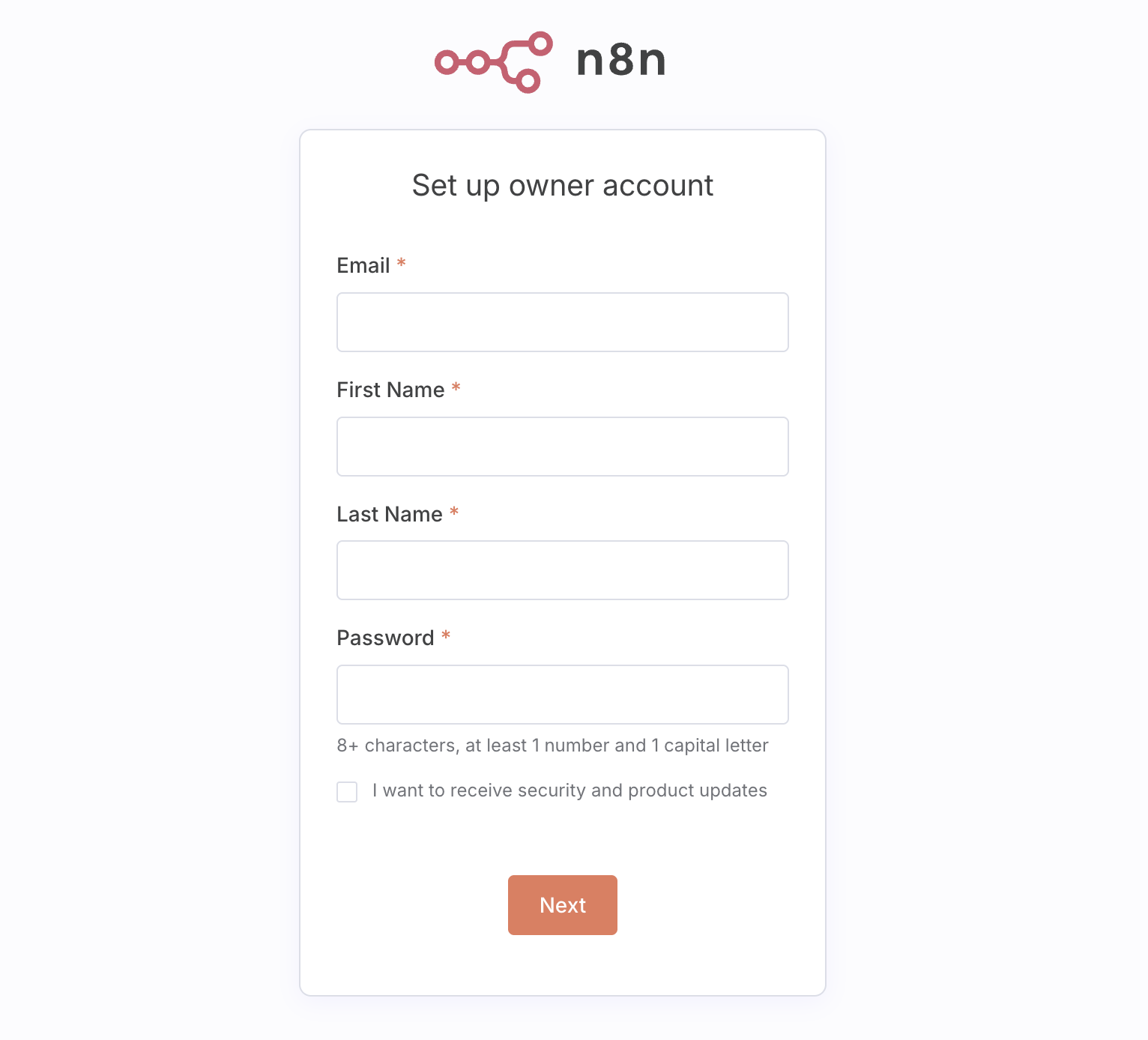

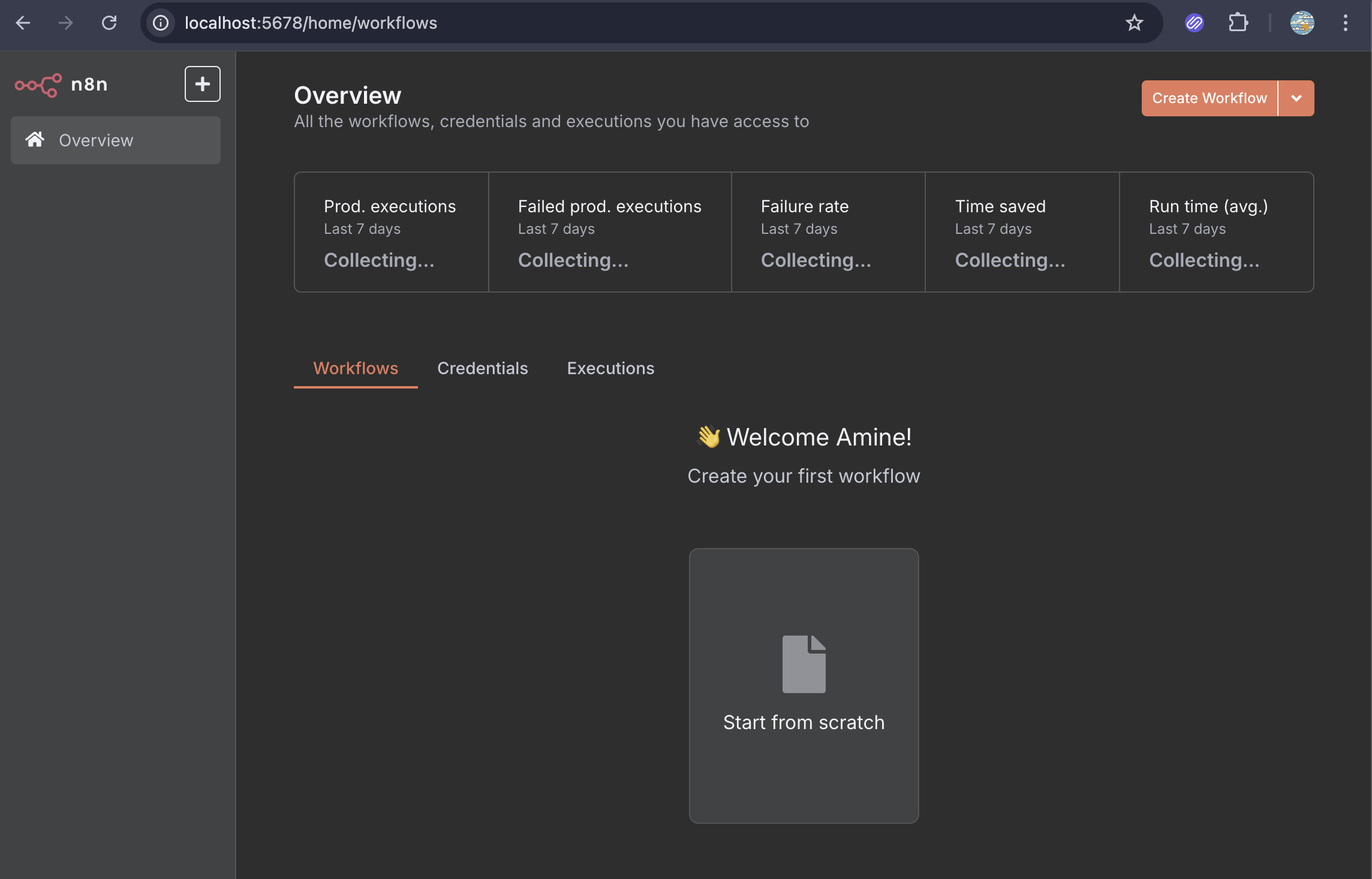

Go to http://localhost:5678 and sign up.

10 – Backup and Restore

CloudNativePG handles:

• Daily full backups
• WAL-based point-in-time recovery

To test a restore:

bootstrap:
  recovery:
    source: clusterBackup
    database: n8n
    owner: n8n
    secret:
      name: n8n-db-creds

11 – Monitoring

CNPG exports Prometheus metrics by default.

Use PodMonitor and Grafana dashboard ID 18630 to visualize cluster health.

Conclusion

In this guide, we showed how to deploy n8n on Kubernetes the right way: with its own dedicated, HA PostgreSQL database, managed secrets in Azure Key Vault, automated backups, and declarative GitOps delivery via ArgoCD.

Whether you’re building automations for a startup or an enterprise platform team, this approach ensures you can deploy n8n with confidence, resilience, and repeatability — all from a single Git commit.

In other words, with GitOps + Terraform, you now have:

• n8n with HA Postgres
• External secret management
• ArgoCD-powered continuous deployment
• Azure-based, encrypted backups

Get the full code: GitHub

Happy automating!
