How you Should Deploy and Use Postgres in Kubernetes

Bootstrapping a Per‑Application Highly‑Available PostgreSQL Cluster with CloudNativePG, Terraform & GitOps:

A step‑by‑step tutorial using the Linkding bookmark manager as an illustration example.

TL;DR – In ~30 minutes you will spin‑up an application and its own highly‑available Postgres cluster using nothing but Git commits and Terraform. We will rely on CloudNativePG (CNPG) for the database layer, ArgoCD for GitOps continuous delivery, External‑Secrets to bridge secrets from Azure Key Vault, and a few battle‑tested DevSecOps patterns.

1 – Why per‑app HA Postgres?

First, let’s briefly present some arguments on why such setup is sound in the first place:

• Blast radius — a rogue migration or DELETE FROM only harms its own cluster.
• Tuned resources — memory/CPU, WAL settings, and retention match the workload.
• Security boundaries — each namespace can enforce distinct RBAC & network policies.
• Lifecycle independence — upgrade, snapshot, or drop a database without downtime for others.

Yes, the trade‑off is more clusters to manage – However CNPG makes that almost trivial.

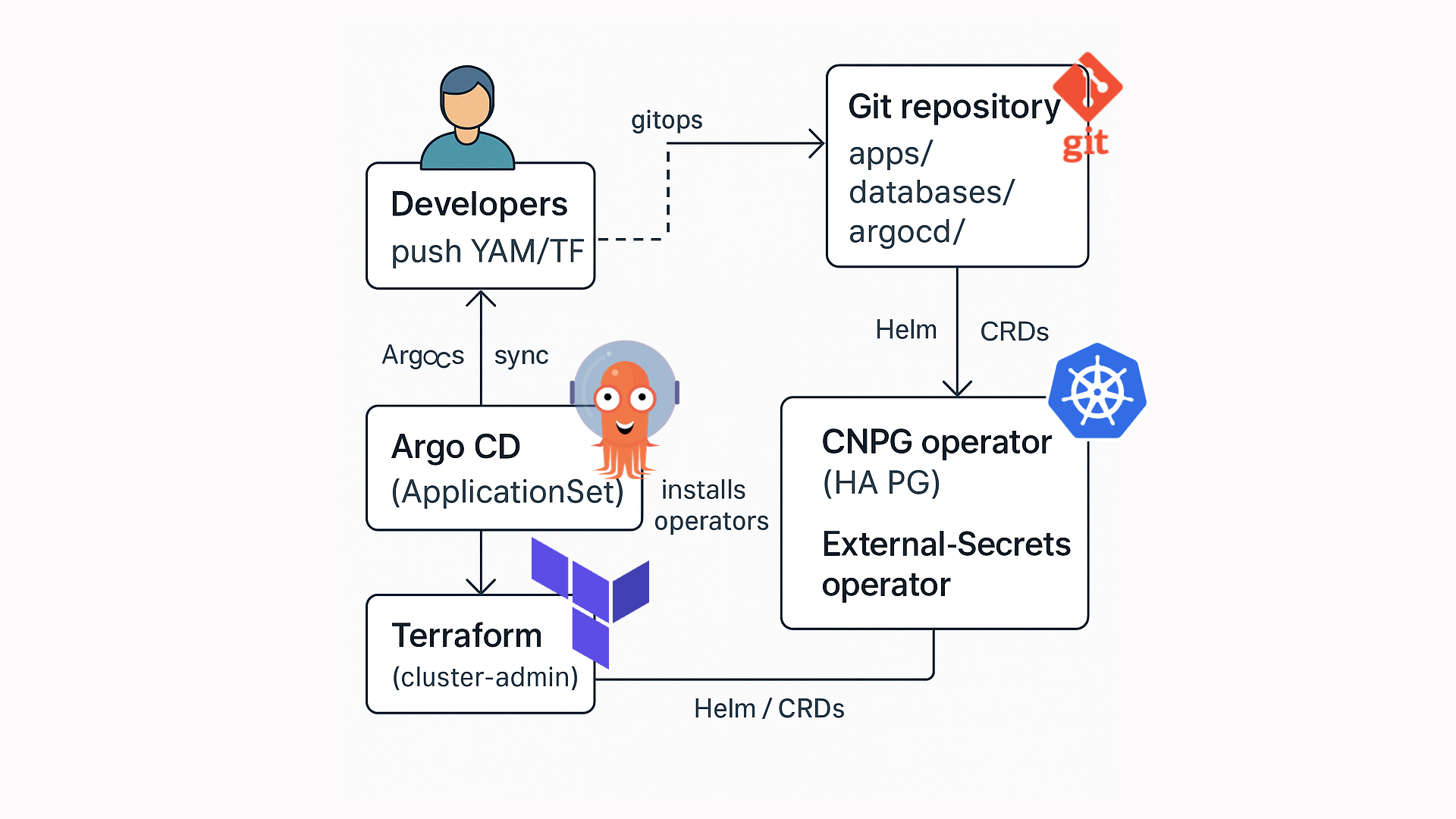

2 – Reference architecture

┌──────────────────────┐              ┌────────────────────────────┐
│  Developers          │  git         │  Git repository            │
│  push YAML/TF        ├─────────────▶│  apps/   databases/        │
└──────────────────────┘              │  argocd/                   │
          ▲ gitops sync               └──────────▲─────────────────┘
          │                                       │
┌─────────┴────────┐                          ┌───┴─────────────┐
│     Argo CD      │  applies manifests     . │  Kubernetes     │
│ (ApplicationSet) ├──────────────────────── ▶│  cluster        │
└─────────┬────────┘                          └────┬────────────┘
          │ Helm / CRDs                            │
┌─────────▼────────┐                         ┌────▼──────────────────────────┐
│ Terraform        │  installs operators     │  CNPG operator (HA PG)        │
│ (cluster‑admin)  ├────────────────────────▶│  External‑Secrets operator    │
└──────────────────┘                         └───────────────────────────────┘

Operators, CRDs and namespaces are installed once via Terraform.

Everything application‑specific lives in Git and is reconciled by ArgoCD.

3 – Prerequisites

Tool	Version tested	Purpose
Kubernetes	≥ 1.27	Where everything runs
Terraform	≥ 1.5	Cluster bootstrap & Day‑0 ops
ArgoCD	≥ 2.8	GitOps engine
CloudNativePG	≥ 1.21	PostgreSQL operator
External‑Secrets Operator	≥ 0.9	Sync secrets from Azure Key Vault
Azure Key Vault	any	Secret backend

You also need kubectl, kustomize and a Git repo.

4 – Repository & GitOps layout

Our repo holds three top‑level domains:

apps/                 # application manifests
  └─ linkding/
       ├─ base/
       │   ├─ deployment.yaml
       │   ├─ service.yaml
       │   └─ kustomization.yaml
       └─ overlays/
           └─ dev/
               ├─ namespace.yaml
               ├─ secrets.yaml        # ExternalSecret → Azure KV
               └─ kustomization.yaml

# A symmetrical layout for the database
Databases/
  └─ linkding/
       ├─ base/
       │   ├─ database.yaml          # CNPG Cluster
       │   └─ kustomization.yaml
       └─ overlays/
           └─ dev/
               ├─ scheduled-backup.yaml
               ├─ secrets.yaml        # S3 / Azure Blob creds
               └─ kustomization.yaml

# Argo CD owns the sync‑loops
argocd/
  ├─ applicationset.yaml          # applications/
  ├─ db‑applicationset.yaml       # databases/
  └─ external-secret-application.yaml

The base directory contains vendor‑agnostic manifests; overlays patch environment‑specific details (Kustomize).

5 – Terraform – bootstrap the operators

Day‑0 steps are performed once per cluster:

# terraform/main.tf
terraform {
  required_version = ">= 1.5.0"

  required_providers {
    helm = {
      source  = "hashicorp/helm"
      version = ">= 2.9.0"
    }
    kubernetes = {
      source  = "hashicorp/kubernetes"
      version = ">= 2.22.0"
    }
  }
}

variable "kubeconfig" {
  description = "Path to your kubeconfig file"
  type        = string
  default     = "~/.kube/config"
}

provider "helm" {
  kubernetes {
    config_path = var.kubeconfig
  }
}

# CloudNativePG operator
resource "helm_release" "cnpg" {
  name             = "cloudnative-pg"
  repository       = "https://cloudnative-pg.github.io/charts"
  chart            = "cloudnative-pg"
  version          = "0.20.1"  # matches CNPG 1.22.x
  namespace        = "cnpg-system"
  create_namespace = true

  set {
    name  = "monitoring.enabled"
    value = true
  }
}

# External‑Secrets operator
resource "helm_release" "external_secrets" {
  name             = "external-secrets"
  repository       = "https://charts.external-secrets.io"
  chart            = "external-secrets"
  version          = "0.9.16"
  namespace        = "external-secrets"
  create_namespace = true

  set {
    name  = "installCRDs"
    value = true
  }
}

# (Optional) Argo CD
resource "helm_release" "argo_cd" {
  name             = "argocd"
  repository       = "https://argoproj.github.io/argo-helm"
  chart            = "argo-cd"
  version          = "5.51.6"
  namespace        = "argocd"
  create_namespace = true

  # Reduce footprint for a lab / homelab
  set {
    name  = "configs.params.server.insecure"
    value = true
  }
}

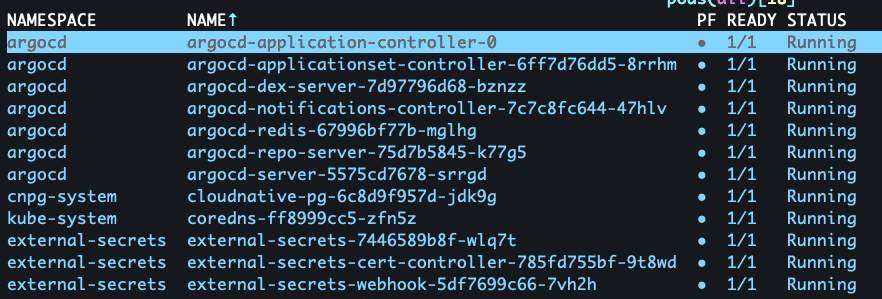

Running terraform apply would get the initial infrastructure up and running in the Kubernetes:

6 – Kustomize manifests

apps/linkding/base/deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: linkding
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linkding
  template:
    metadata:
      labels:
        app: linkding
    spec:
      containers:
        - name: linkding
          image: sissbruecker/linkding:latest
          ports:
            - containerPort: 9090
          env:
            - name: LD_DB_ENGINE
              value: django.db.backends.postgresql
            - name: LD_DB_HOST
              value: pg-dev-rw.cnpg-dev.svc.cluster.local
            - name: LD_DB_PORT
              value: "5432"
            - name: LD_DB_NAME
              value: linkding
            - name: LD_DB_USER
              valueFrom:
                secretKeyRef:
                  name: linkding-db-secret
                  key: username
            - name: LD_DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: linkding-db-secret
                  key: password
          volumeMounts:
            - name: linkding-data
              mountPath: /etc/linkding/data
      volumes:
        - name: linkding-data
          emptyDir: {}

databases/linkding/base/database.yaml

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: linkding-db-dev-cnpg-v1
spec:
  description: Postgres cluster for the linkding application
  imageName: quay.io/enterprisedb/postgresql:16.1
  instances: 3 # High‑availability

  storage:
    size: 5Gi

  monitoring:
    enablePodMonitor: true

  inheritedMetadata:
    labels:
      app: linkding-database
      policy-type: database

  bootstrap:
    initdb:
      database: linkding
      owner: linkding
      secret:
        name: linkding-db-creds

  resources:
    requests:
      memory: 600Mi

  backup:
    barmanObjectStore:
      destinationPath: https://myblob.blob.core.windows.net/linkding-db
      azureCredentials:
        storageAccount:
          name: linkding-db-storage
          key: container-name
        storageSasToken:
          name: linkding-db-storage
          key: blob-sas
      wal:
        compression: gzip
      data:
        compression: gzip
    retentionPolicy: 14d

With CNPG a read–write service (*-rw) and a read‑only service (*-ro) are generated for you – we point LD_DB_HOST to the former.

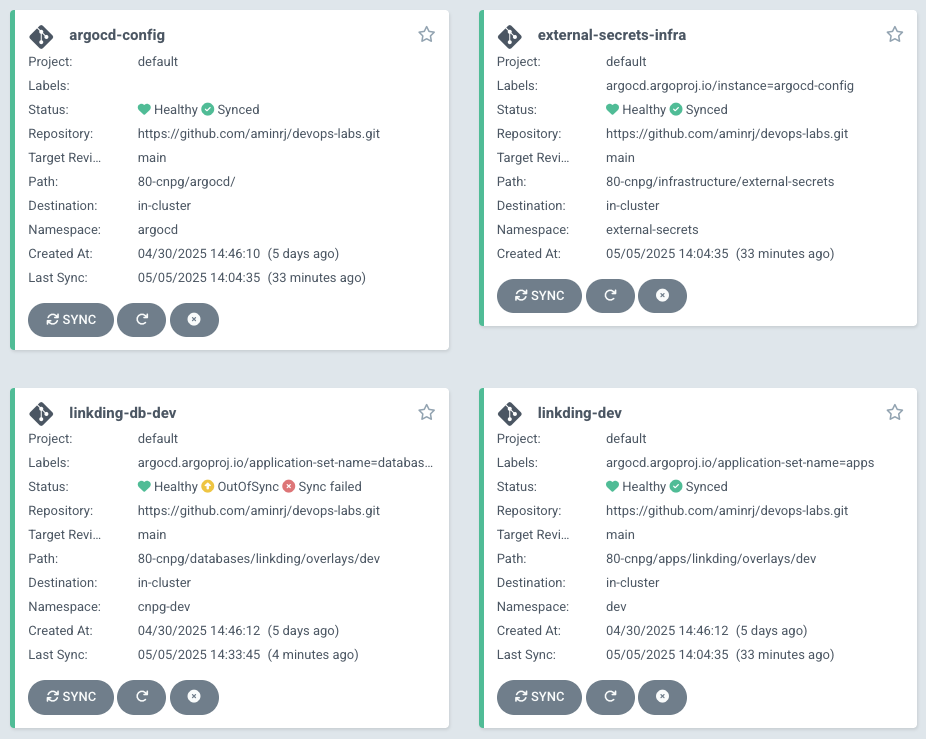

7 – ArgoCD ApplicationSets

A single ApplicationSet per domain keeps things DRY:

# argocd/applicationset.yaml
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: apps
spec:
  generators:
    - git:
        repoURL: https://github.com/aminrj/devops-labs.git
        revision: main
        directories:
          - path: 80-cnpg/apps/*/overlays/*
  template:
    metadata:
      name: "-" # example: commafeed-dev, listmonk-qa...
    spec:
      project: default
      source:
        repoURL: https://github.com/aminrj/devops-labs.git
        targetRevision: main
        path: "80-cnpg/apps//overlays/" #Example: apps/nextjs-app/dev
      destination:
        server: https://kubernetes.default.svc
        namespace: "" # dev, qa, prod as namespace (simpler - for now)
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

Repeat the same for databases/*.

8 – Bootstrapping the database

1. Create secrets in Azure Key Vault (linkding-db-username, password, blob SAS…).

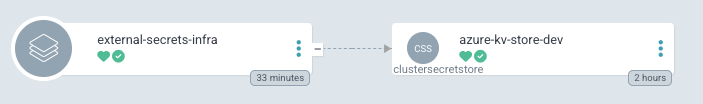

2. Commit the external-secrets.yaml manifest in both app and database overlays – EKS will automatically generate Kubernetes Secrets.
3. Merge to main ➜ ArgoCD applies everything ➜ CNPG operator spins‑up the cluster.
4. CNPG initialises linkding database & role using the provided secret.

Creating secrets in Azure Key Vault can be automated using Terraform:

# Linkding DB credentials
resource "random_password" "db_pwd" {
  length  = 32
  special = true
}

resource "azurerm_key_vault_secret" "db_user" {
  name         = "linkding-db-username"
  value        = var.db_username
  key_vault_id = azurerm_key_vault.this.id
}

resource "azurerm_key_vault_secret" "db_password" {
  name         = "linkding-db-password"
  value        = random_password.db_pwd.result
  key_vault_id = azurerm_key_vault.this.id
}

You can watch the progress:

kubectl -n cnpg-dev get clusters
kubectl -n cnpg-dev get pods -l cnpg.io/cluster=linkding-db-dev-cnpg-v1

9 – Deploying Linkding

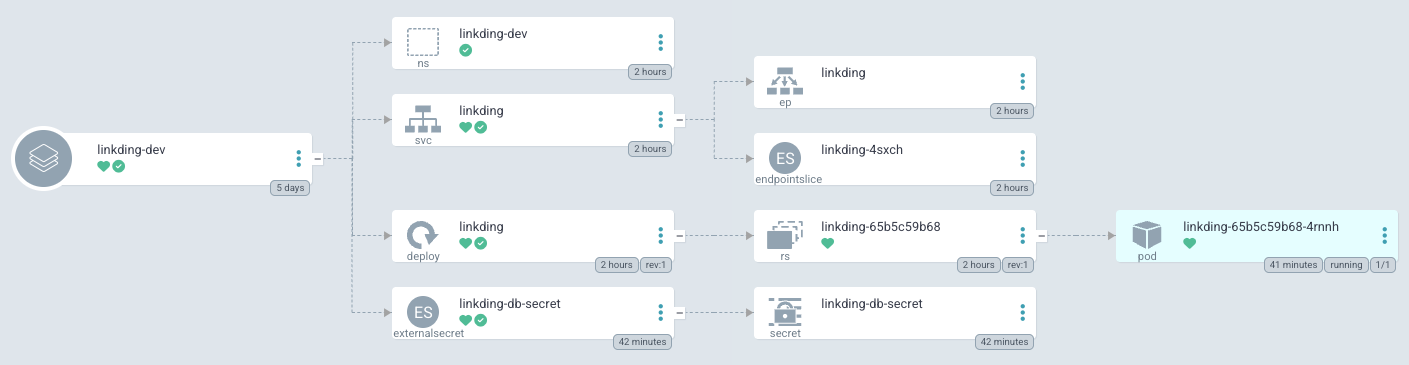

With the database ready, ArgoCD synchronises the apps/linkding Application:

kubectl -n linkding-dev get svc,pods

Port‑forward and log‑in at http://localhost:9090.

10 – Back‑ups & disaster‑recovery

• Point‑in‑time recovery – WAL archives are pushed to Azure Blob on every segment.
• Scheduled full backups – ScheduledBackup CRD kicks in daily at 03:00.
• Retention – 14d keeps your bucket tidy.

Restore from any point:

bootstrap:
  recovery:
    source: clusterBackup
    database: linkding
    owner: linkding
    secret:
      name: linkding-db-creds

11 – Monitoring & observability

CNPG exports a Prometheus PodMonitor out‑of‑the‑box. Wire it to your Prometheus stack and import the official Grafana dashboard (ID 18630). External‑Secrets also ships metrics at /metrics.

12 – Testing HA & fail‑over

Kill the primary:

kubectl -n cnpg-dev delete pod linkding-db-dev-cnpg-v1-0

Within seconds a replica is promoted – check with:

kubectl -n cnpg-dev get clusters linkding-db-dev-cnpg-v1 -o jsonpath='{.status.currentPrimary}'

Your application keeps running because its Service always targets the *-rw endpoint.

13 – Going further

• Instance = 5 – geo‑replicated clusters.
• StorageClass – use SSD vs HDD tiers per workload.
• OPA Gatekeeper – enforce labels & annotations across all clusters.
• Kyverno – auto‑inject PodDisruptionBudget or certificate rotation.
• Cross‑plane – provision cloud infra via CRDs entirely inside GitOps.

---

Conclusion

There you have it, our Linkding application is up and running using its own PostgresQL Cluster.

You can get access to the full code example here: Github repo.

With ~250 lines of YAML and minimal Terraform glue we achieved:

• IAM‑less secret management via External‑Secrets;
• dedicated, HA Postgres for every application;
• immutable, auditable deployments powered by Git;
• automated backups and disaster‑recovery.

Happy hacking – and remember: kubectl delete pod is the new pull‑the‑plug chaos test!
